Black

Jet Black, Cloth Seat Trim

EMISSIONS, COLORADO, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, MINNESOTA, NEVADA, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT, VIRGINIA AND WASHINGTON STATE REQUIREMENTS

REAR AXLE, 3.73 RATIO

WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment

WT CONVENIENCE PACKAGE includes (AKO) tinted windows and (C49) rear-window defogger

SNOW PLOW PREP PACKAGE includes (KW5) 220-amp alternator, includes increased front GAWR on Heavy Duty models, (NZZ) skid plates (transfer case and oil pan), pass through dash grommet hole and roof emergency light provisions. Contact GM Upfitter Integration at www.gmupfitter.com for plow installation details and assistance

BATTERY, AUXILIARY, 700 COLD-CRANKING AMPS/70 AMP-HR

ALTERNATOR, 220 AMPS

SKID PLATES protect the oil pan, front axle and transfer case

BUMPER, FRONT CHROME

MIRRORS, OUTSIDE POWER-ADJUSTABLE VERTICAL TRAILERING WITH HEATED AND AUTO-DIMMING UPPER GLASS lower convex mirrors, turn signal indicators, puddle lamps, (U12) perimeter lighting, auxiliary lighting, power folding/manual extending (extends 3.31" [84.25mm]), Black Includes (DD8) auto-dimming rearview mirror.)

GLASS, DEEP-TINTED

LICENSE PLATE KIT, FRONT (will be shipped to orders with ship-to states that require front license plate)

SIRIUSXM TRIAL SUBSCRIPTION

UPFITTER SWITCH KIT, (5) Provides 3-30 amp and 2-20 amp configurable circuits to facilitate installation of aftermarket electrical accessories. Kit with all required parts will be shipped loose with the truck for installation by the dealer or upfitter at customer expense. Installation instructions and technical assistance available at www.gmupfitter.com.

POWER OUTLET, INTERIOR, 120-VOLT (400 WATTS)

DEFOGGER, REAR-WINDOW ELECTRIC

MIRROR, INSIDE REARVIEW AUTO-DIMMING

REAR CAMERA KIT. Kit includes camera, fixed position bracket & 19 ft cable with attachment clips. Rear camera radio calibration provided from the factory. See Upfitter Integration Bulletin for installation instructions at www.gmupfitter.com

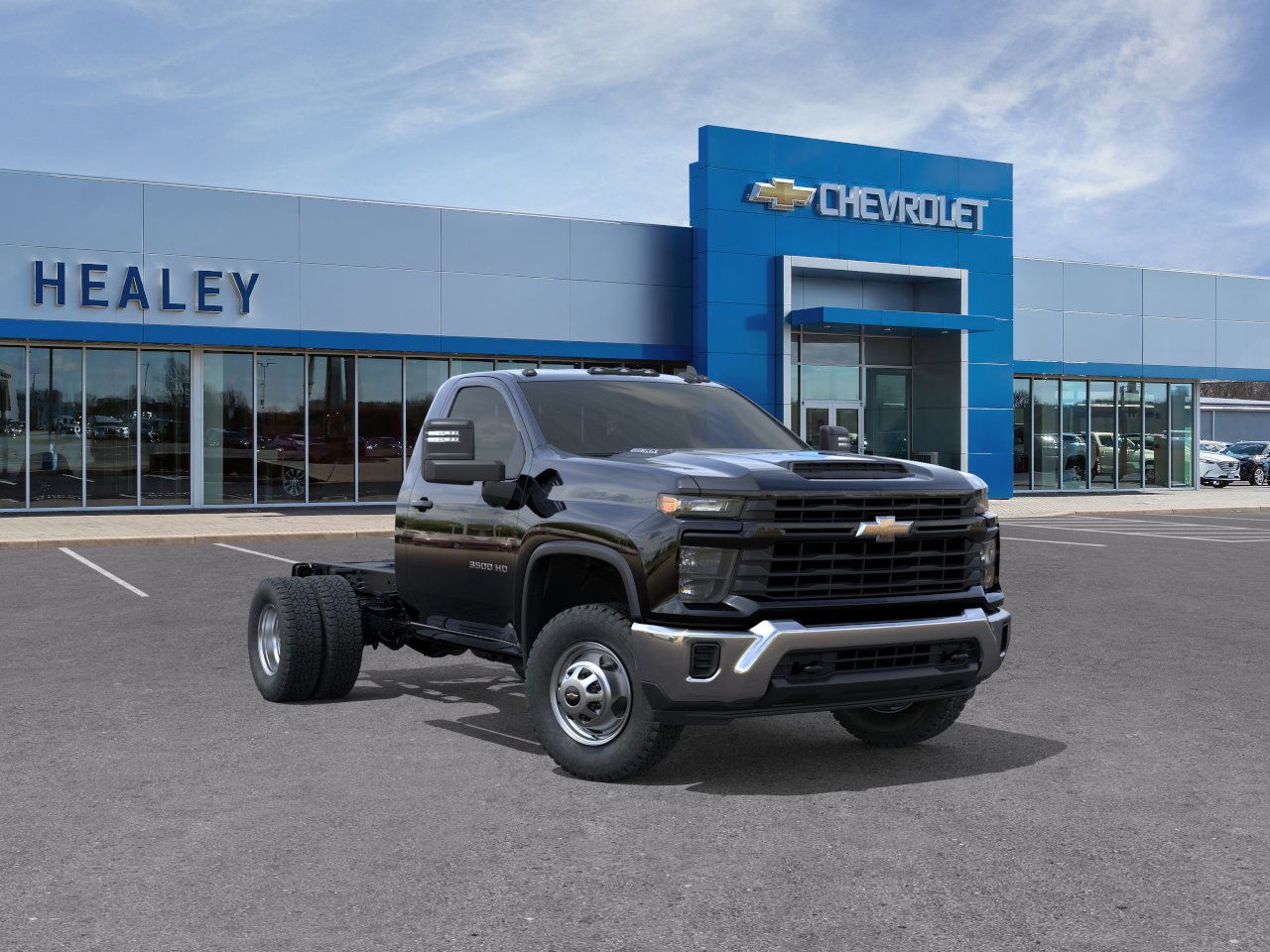

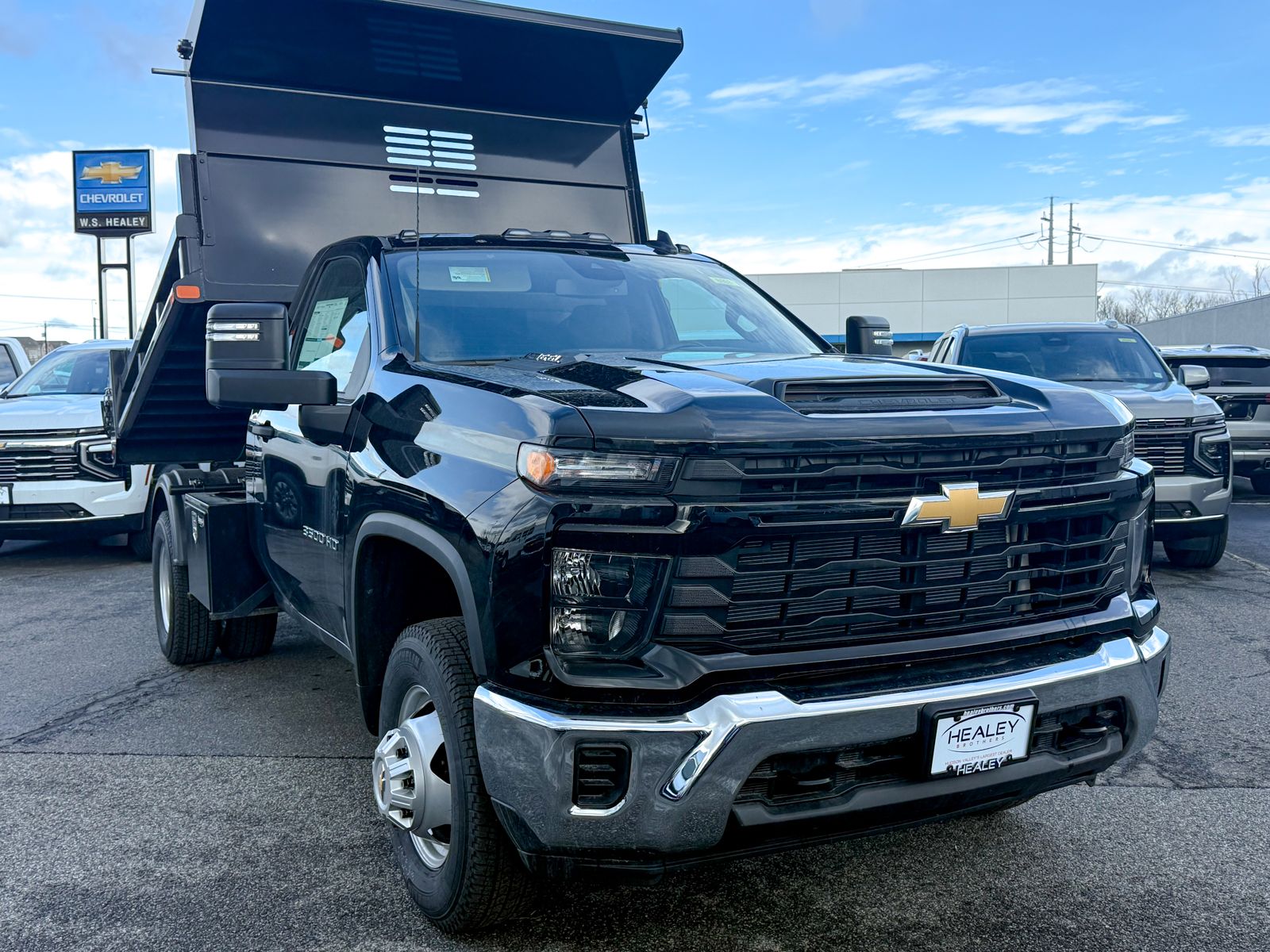

Vehicle Name - Chevrolet Silverado 3500HD CC

Body Style - Regular Cab Chassis Cab

Body Code - ZW9

Drivetrain - Four Wheel Drive

Passenger Capacity - 2

Gross Axle Wt Rating - Front (lbs) - - TBD -

Gross Axle Wt Rating - Rear (lbs) - 10400

Curb Weight - Front (lbs) - 4020

Curb Weight - Rear (lbs) - 2612

Gross Vehicle Weight Rating Cap (lbs) - 14000

Fuel Economy Est-Combined (MPG) -

EPA Fuel Economy Est - City (MPG) -

EPA Fuel Economy Est - Hwy (MPG) -

Tons/yr of CO2 Emissions @ 15K mi/year -

Gross Combined Wt Rating (lbs) - 26000

Dead Weight Hitch - Max Trailer Wt. (lbs) -

Dead Weight Hitch - Max Tongue Wt. (lbs) -

Wt Distributing Hitch - Max Trailer Wt. (lbs) -

Wt Distributing Hitch - Max Tongue Wt. (lbs) -

Fifth Wheel Hitch - Max Trailer Wt. (lbs) -

Fifth Wheel Hitch - Max Tongue Wt. (lbs) -

Engine Order Code - L8T

Engine Type - Gas V8

Displacement - 6.6L/- TBD -

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 401 @ 5200

SAE Net Torque @ RPM - 464 @ 4000

Trans Order Code - MKM

Trans Type - 10

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.54

Second Gear Ratio (:1) - 2.87

Third Gear Ratio (:1) - 2.06

Fourth Gear Ratio (:1) - 1.72

Fifth Gear Ratio (:1) - 1.48

Sixth Gear Ratio (:1) - 1.26

Seventh Gear Ratio (:1) - 1.00

Eighth Gear Ratio (:1) - 0.85

Ninth Gear Ratio (:1) - 0.69

Tenth Gear Ratio (:1) - 0.63

Reverse Ratio (:1) - 4.54

Clutch Size (in) -

Trans Power Take Off - Yes

Trans PTO Access - - TBD -

Transfer Case Model - Magna MP3023/4

Transfer Case Gear Ratio (:1), High - 1.00

Transfer Case Gear Ratio (:1), Low - 2.69

Transfer Case Power Take Off -

Cold Cranking Amps @ 0? F (Primary) - 720

Cold Cranking Amps @ 0? F (2nd) - 700

Maximum Alternator Capacity (amps) - 220

Maximum Alternator Watts - - TBD -

Total Cooling System Capacity (qts) - - TBD -

Engine Oil Cooler - Yes

Frame Type - Hydroformed Fully-Boxed

Suspension Type - Front - Short Long Arm Independent

Suspension Type - Rear - Semi-Elliptic Three-Stage Multi-Leaf Spring

Spring Capacity - Front (lbs) - - TBD -

Spring Capacity - Rear (lbs) - - TBD -

Axle Type - Front - - TBD -

Axle Type - Rear - - TBD -

Axle Capacity - Front (lbs) - - TBD -

Axle Capacity - Rear (lbs) - - TBD -

Axle Ratio (:1) - Front - 3.73

Axle Ratio (:1) - Rear - 3.73

Shock Absorber Diameter - Front (mm) - 51

Shock Absorber Diameter - Rear (mm) - 51

Stabilizer Bar Diameter - Front (in) - 1.38

Stabilizer Bar Diameter - Rear (in) -

Front Tire Order Code - QZT

Rear Tire Order Code - QZT

Spare Tire Order Code -

Front Tire Size - LT235/80R17E

Rear Tire Size - LT235/80R17E

Spare Tire Size -

Front Tire Capacity (lbs) - - TBD -

Rear Tire Capacity (lbs) - - TBD -

Spare Tire Capacity (lbs) -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - - TBD -

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - - TBD -

Revolutions/Mile @ 45 mph - Spare (Rev/Mile) -

Front Wheel Size (in) - 17 x - TBD -

Rear Wheel Size (in) - 17 x - TBD -

Spare Wheel Size (in) -

Front Wheel Material - Steel

Rear Wheel Material - Steel

Spare Wheel Material -

Steering Type - Pwr Recirculating Ball

Steering Ratio (:1), On Center - - TBD -

Steering Ratio (:1), At Lock - - TBD -

Turning Diameter - Curb to Curb (ft) - 47.0

Turning Diameter - Wall to Wall (ft) - - TBD -

Brake Type - Pwr

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) -

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 14 x 1.6

Rear Brake Rotor Diam x Thickness (in) - 14 x 1.6

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 40

Aux Fuel Tank Capacity, Approx (gal) -

Fuel Tank Location - Rear

Aux Fuel Tank Location -

Front Head Room (in) - 43.03

Front Leg Room (in) - 44.53

Front Shoulder Room (in) - 66.06

Front Hip Room (in) - 60.09

Wheelbase (in) - 146

Length, Overall (in) - 239.84

Width, Max w/o mirrors (in) - 80.84

Height, Overall (in) - 80.1

Overhang, Front (in) - - TBD -

Overhang, Rear w/o bumper (in) - - TBD -

Front Bumper to Back of Cab (in) - 126.55

Cab to Axle (in) - 60

Cab to End of Frame (in) - - TBD -

Ground to Top of Load Floor (in) -

Ground to Top of Frame (in) - - TBD -

Frame Width, Rear (in) - 95.42

Ground Clearance, Front (in) - 8.15

Ground Clearance, Rear (in) - 8.15

Model Group - Silverado

Vehicle Segment - Chassis

Vehicle Type - Standard Cab

Body Cab Style - Standard Cab

Engine Displacement Units - 6.6

Engine Camshaft - OHV

Engine Block Type - iron

Engine Cylinder Count - 8

Engine Valve Count - 4

Country of Origin - United States Active Incomplete Vehicle
